Full Automatic UV flatbed printer 5colors 60*40cm for Any material
printing for Multifunction DTG 3D uv machine printer

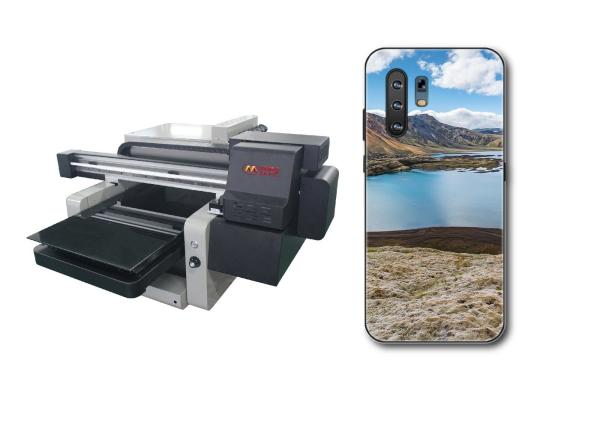

ZKMC multifunctional Flatbed UV Printer, can print a variety of
materials.Can print on stone, USB drive, packing box, portable
battery, hand held fan, mobile phone case, decorative painting,
identification cards, cosmetic mirror, foundation make-up cover,
skin care products cover, lighter, badge, building blocks, note book or any other flat surfaces by using our special uv ink.
To satisfy you various needs in any season.
The printhead is imported from Japan with industrial production
speed and automatic cleaning funciton and can save ink, the print
range can be as wide as 40*60cm.
The printing color is gorgeous, no plate making, easy to operate.
In the future, personalized customized services/patterns will
become the mainstreem of consumption.
We are seeking agents worldwide, hope cowork with You soon.
UV lamp series | 20 section uv power adjustable |
| UV lamp power | single lamp configuration 120w |
| UV lamp life | 50000 hours |
| UV lamp wavelength | 390-400NM |
| Light intensity | 500MW/W |
| Temperature adjustment | automatic on/off, 25-30℃ |
| Software | ZMKM output software, Rip |
| Ink system | refillable cartridge system |
| Cooling system | air cooling+water cooling |
| Print head | Epson I1600 |
| Print head protection | Auto checking |
| Ink tube capacity | 220ml*5 |
| Ink reproduction | Linear curve ICC calibration curve |
| Print color | KCMY+W |
| Print speed | High /Medium /Low adjustable |
| Print direction | single/bi-direction |
| Max. print medium thickness | 0-150mm |
| Max. print medium weight | 30kg |
| Max. print resolution | 2440*1440*720dpi |
| Work power | 110V-220V, 50-60HZ |
| Port | USB2.0/ USB 3.0/ TCPIP |
| Work environment | 25-30℃, 50% humidity, no dust |
| Machine size | 1200*1000*660mm |
| Packaging dimension | 1300*900*1125mm |
| Maximum printing size | A2+,400*600MM |
| Print head maintenance | Clean the print head before using and after using, keep the print
head moisture when it is not work |
| Computer system request | Window7/ 10 |
| Platform lifting configuration | Screw rail plus linear guide rail |
| Positioning mode | computer typesetting printing positioning |
| Height adjustment mode | software one key control /physical keyboard control |
| Platform type | glass platform +aluminum platform |
| Ink processing system | Can set time for ink automatic cycling and mixing (ink colors
matching),have liquid level sensor for ink cooling alarm |
| Transmission way | X axis linear guide rail, Two linear guiderails on both sides of Y
axis,equipped with double high-precision grinding lead screws |
| Remark above data for reference only. Data may change due to
continuous product upgrading and development. |
Q&A
1. Do you provide warranty for machine
Yes, we provide 1 year warranty for machine, printhead excluded.
2. How can I buy your machine?
You may contact us directly for machine purchasing. Or for any info
needed.
3. How can I make the payment?
Currently, our company accept T/T and cash payment.
