Special Water Based Ink 62kg Vertical Wall Printing Machine For
Advertising Co.
This vertical wall printer was independently developed by ZKMC. It
can be widely used for interior and exterior picture printings.
This new model is installed with imported Japanese printhead, with
high printing accuracy upto 2880dpi, high printing speed upto
7m2/h, and perfect printing quality. It can not only easily achieve
3D printing effects, but also can meet the long hours and big
printing projects because of its stable performance.
| Basic parameters |
| Data transmission mode | USB |
| L*W*H (main body from ground) | Standard model: 70*31*239cm (the other models: 259cm, 329cm) |
| Printhead | Auto cleaning |
| Ink consumption | 8-12ml/m2 (less than USD1/m2) |
| Ink base color | Dual 4 colors (CMYK, CMYK), use special water based ink |
| Painting precision | From 720DPI, upto 2880DPI |
| Painting direction | Vertical |
| Painting speed | Multispeed adjustable, ~1-10m2/h |
| Voltage/power | 90-246V/380W,47-63HZ |
| Noise | Standy<20dBA, painting <50dBA |
| Storage/Operation | -10℃-35℃(59°F-95°F) |
| 10%-70% relative humidity, in non-condensation state |
| Surface tracing | Hyperbolic banner sensors, two-way induction up and down |
| Machine configuration |
| X axis guide | 5m rails |
| Y axis guide | Standard model: 219cm(the other models: 239cm, 309cm) |
| Z axis guide | 15cm |
| Display screen | 7’’ LCD, touch screen |
| Spay distance | 0.5-1cm |
| X axis effective stroke | 470cm |
| Y axis effective stroke | Standard model: 180cm (the other models: 200cm, 270cm) |
| Z axis effective stroke | 10cm |
| Synchro belt | 1pc |
| Drive rack | 5pcs |
| Net picture print height | Standard 1.8m (other models: 2.0m, 2.7m), unlimited width |
| Machine weight | 62kg |
| Lead rails weight | 10kg*5pcs |
| Applied wall | Inside & outside putty wall, latex wall, white wall, diatom mud
wall, shell powder wall, wooden wall, paper, brick wall, canvas,
etc. |
| Control configuration |
| Ink container capacity | 400ml |
| Printhead cleaning | Auto |
| Pump test | Y |
| Stepper motor | Y |
| Level | Y |
| Painting mode | Bi-directional |
| Ultrasonic sensors | 2pcs |
| Performance configuration |
| Language switch | Chinese, English |
| Auto skip blank | Y |
| Intelligent lifting | Support |
| Ink supply mode | Negative pressure auto ink supply |
| Color matching treatment | Auto |
| Ink use | Water based ink |
| Surface treatment | Water based varnish |
| Integrated voltage stabilizer | Y |
| Ink Heating | Y |
| Software | Professional Printer Maintop Software, ZKMC output software |
| Computer system | Windows XP, win7, win8, win10 |
| Remarks | The above data for reference only, may change due to continuous
product/model upgrading. |
Advantages of Machine:
1. A wide range of pictures can be printed on various walls
Landscapes pictures,Chinese style painting, oil painting, gouache,
paintings of flowers, birds and insects, cartoon animation, wedding
photos, family photos, etc. can be printed on various walls
2. Broadly market outlook and applications
Suitable for any wall. like Emulsion paint surface, putty wall,
diatom mud surface, wall cloth surface, wallpaper surface.etc.
Broadly applies to the decoration of family, hotel, bar,
kindergarten, school, and the government propaganda pictures,
poster, etc.
3. Stable, High efficiency
Two sensors, integrated circuit chips, add Integrated Voltage
Regulator and Ink thermostat program, encoded motor, all those
improvement make our printer more stable and high efficiency
4. Printhead
Automatic printhead cleaning and the uneven wall detecting,the ink
jet is much smoothly, quickly, dyeing is more accurate, delicate,
bright and clearly.
5. Intelligent lift platform
Adjust the machine height according to the different wall heights.
6. High Resolution
Printing resolution from 720dpi up to 2880dpi.

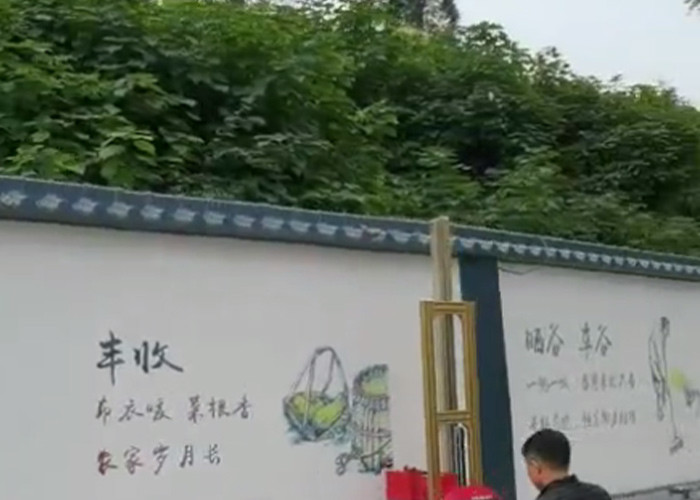

Real mural printing projects done by ZKMC vertical wall printer!
ZKMC vertical wall printer won so much attentions because of high
quality and perfect printing effects.
ZKMC vertical wall printer is widely used in kindgarten outdoor and
indoor picture printings!
