2880dpi Vertical Wall Printer High Resolution

Ask Lasest Price
Brand Name :	Zhongkemeichuang
Model Number :	ZK-Q7PLUS
Certification :	CE for machine, RoHS for ink
Payment Terms :	T/T
Delivery Time :	5-10 work days
Price :	Negotiable
Supply Ability :	100 sets/month

Add to Cart

Product Details
Company Profile

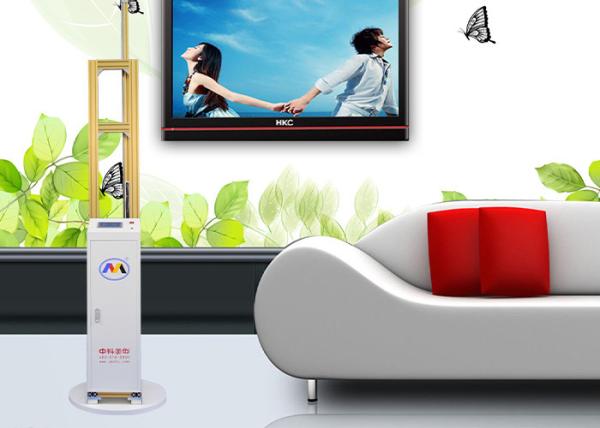

2880dpi Vertical Wall Printer High Resolution

Home Decoration CE 2880dpi Vertical Wall Printer For Interior Printing

This vertical wall printer is installed with unique ink heat program which ensures machine to work normally in cold weather. It uses our customized special water based ink with RoHs. Its printing resolution upto 2880dpi. The machine helps our customers to achieve the best printing effects with stable performance.

Basic parameters
Data transmission mode	USB
LWH (main body from ground)	Standard model: 7031239cm (the other models: 259cm, 329cm)
Printhead	Auto cleaning
Ink consumption	8-12ml/m2 (less than USD1/m2)
Ink base color	Dual 4 colors (CMYK, CMYK), use special water based ink
Painting precision	From 720DPI, upto 2880DPI
Painting direction	Vertical
Painting speed	Multispeed adjustable, ~1-7m2/h
Voltage/power	90-246V/380W,47-63HZ
Noise	Standy<20dBA, painting <50dBA
Storage/Operation	-10℃-35℃(59°F-95°F)
Storage/Operation	10%-70% relative humidity, in non-condensation state
Surface tracing	Hyperbolic banner sensors, two-way induction up and down
Machine configuration
X axis guide	5m rails
Y axis guide	Standard model: 219cm (other models: 239cm, 309cm)
Y axis effective stroke	Standard model: 180cm (other models: 200cm, 270cm)
Z axis effective stroke	10cm
Synchro belt	1pc
Drive rack	5pcs
Lead rails weight	10kg/piece*5pcs, total 50kg
Applied wall	Inside & outside putty wall, latex wall, white wall, diatom mud wall, shell powder wall, paper, brick wall, normal white wall, canvas, etc.
Control configuration
Ink container capacity	400ml
Printhead cleaning	Auto
Pump test	Y
Stepper motor	Y
Level	Y
Painting mode	Bi-directional
Ultrasonic sensors	2pcs
Performance configuration
Language	English
Auto blank skip	N
Ink supply mode	Negative pressure auto ink supply
Color matching treatment	Auto
Ink use	Special water based ink
Surface treatment after printing	Water based varnish
Integrated voltage stabilizer	Y
Ink Heating	Y
Software	Professional Printer Maintop Software, ZKMC output software
Computer system	Windows XP, win7, win8, win10
Packing	1 plywood packing for standard model of machine, machine and inks in 1 box, total gross weight ~220kg, box dimension ~237x81x68cm
Remarks	The above data for reference only, may change due to continuous product/model upgrading.

Vertical Wall Printer Show

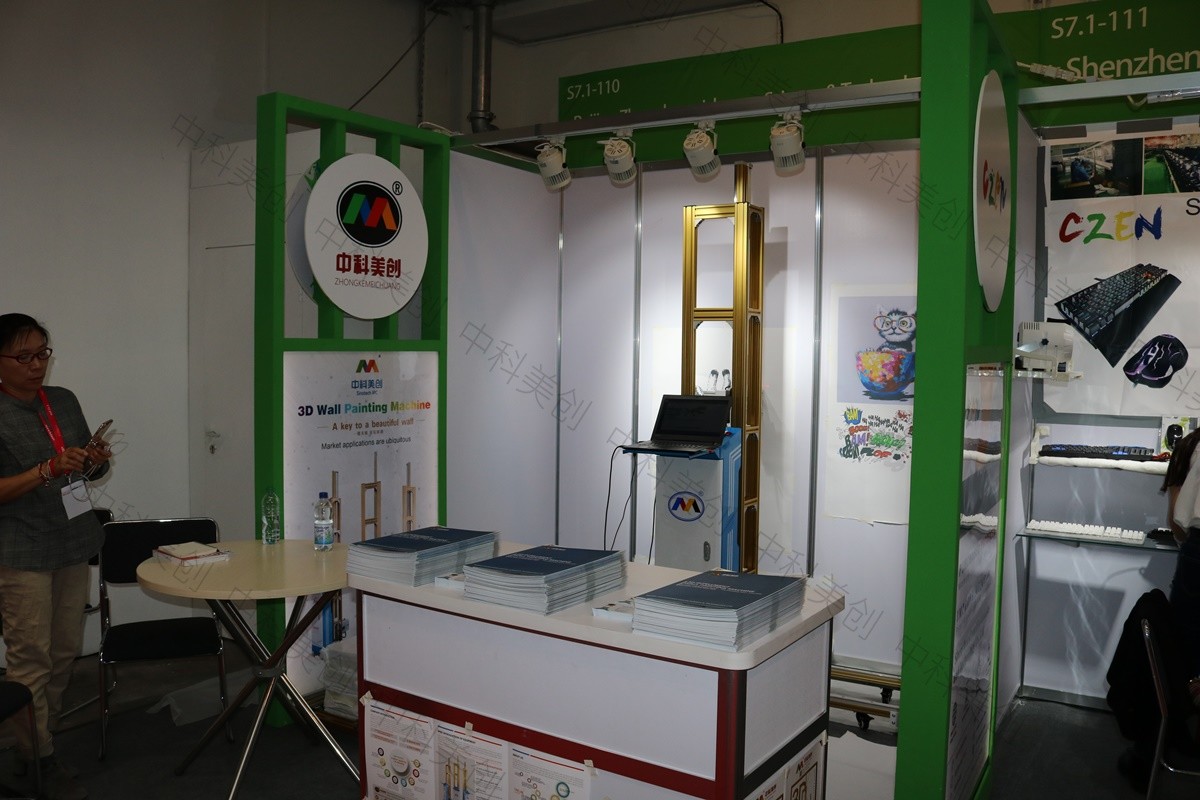

We're at IFA 2018 International Expo, Berlin, Germany.

2880dpi Vertical Wall Printer High Resolution

German Media Special Report About ZKMC Vertical Wall Printer at IFA

FAQ

Q: Why can the Q8 machine print only up to 1.8 - 2.7m?

A: For standard ZK-Q8 model, the assembled machine height (from ground) is 2.39m for net picturing painting height of 1.8m. It is the most suitable height, which can ensure our machine to be erected indoor. Besides ZK-Q8 standard model, we also have net picture painting height of 2.0m, and 2.7m with total machine height of 2.59m, and 3.29m (total height measuring from ground), respectively. Additionally, any heights can be customized based on our customer's special requirement.

Q: Why do we use water-based ink?

A: It's our customized ink with advantages below
1.Easy absorbed by the wall completely
2. Show perfect color effect on the wall
3. It would not cause the printhead block, and corrode the ink system
4. RoHS certification, satisfy the public environmental protection requirements

Kind reminding: in order to keep the final painting pictures for longer, we suggest our customer to do a coating using the crystal water varnish after the painting dry. By doing this, the final painting is not only waterproof, but also sunscreen and wear resistance. It would last for over 10 years indoor and about 5 years outdoor.

Q: Is it complicated to operate the wall printing machine?

A: No, it is automatic. Everyone can master all of skills within 1 or 2 days. No need of any professional knowledge or background.
