2021 Launched Industrial Computer Foldable Inkjet Smart 2880dpi 2
Printheads Vertical Wall Printer 3d Effect Printing

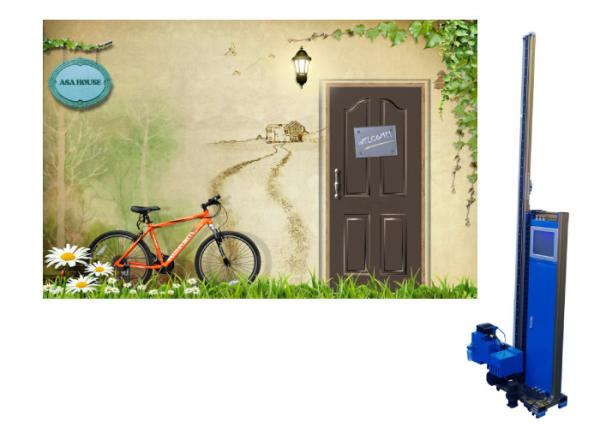

ZKMC invention ZKMC Vertical Wall Printing Machine is used for directly printing various individual patterns on
ceramic tiles, glass, wood, metal, cement wall, brick wall, etc.
In 2021, the general direction of the market is 3D effect. The cost of the
traditional manual process is quite expensive, however, the printing price of the wall printer is very friendly, ordinary people can accept and afford.
Foldable 3D effect UV vertical Printer has the widest usage in
life. It is a modern high-technique product. With this lovely
printing robot, you can print any
picture/pattern/sentences/calligraphy/art works on walls, glass,
wood, ceramic, metal box, paper, fabric etc. You can take advantage
of this modern printing machine to make good money.
| Basic parameters | |
| Data transmission mode | USB |
| L*W*H (main body from ground) | 80*32*239cm (height customizable) |
| Printhead | Auto cleaning |
| Ink consumption | 15-20ml/m2 |
| Ink base color | CMYK+WWWW |
| Painting precision | Upto 2880DPI |
| Painting direction | Vertical |
| Painting speed | Multispeed adjustable, ~1-8m2/h |
| Voltage/power | 90-246V/380W,47-63HZ |
| Noise | Standy<20dBA, painting <50dBA |
| Storage/Operation | -10℃-35℃(59°F-95°F) |
| 10%-70% relative humidity, in non-condensation state |
| Surface tracing | Hyperbolic banner sensors, two-way induction up and down |
| Machine configuration | |
| X axis guide | 5m rail |
| Z axis guide | 14cm |
| Spay distance | 0.5-1cm |
| X axis effective stroke | 470cm |
| Z axis effective stroke | 10cm |
| Synchro belt | 1pcs |
| Drive rack | 5pcs |
| Net picture print height | 160cm (height customizable) |
| Machine weight | 52kg |
| Lead rails weight | 10kg/piece*5pcs, total 50kg |
| Applied wall | Any flat materials |
| Control configuration | |
| Ink container capacity | 400ml/piece |
| Printhead cleaning | Auto |
| Flasing testing | Y |
| Stepper motor | Y |
| Level | Y |
| Painting mode | Bi-directional |
| Ultrasonic sensors | 2pcs |
| Performance configuration | |
| Language | English |
| Auto blank skip | Y |
| Ink supply mode | Negative pressure auto ink supply |
| Color matching treatment | Auto |
| Ink use | Special UV ink |
| Surface treatment after printing | N |
| Integrated voltage stabilizer | Y |
| Laser positioning | Y |
| Ink Heating | Y |
| Software | Professional Printer Maintop Software, ZKMC output software |
| Computer system | Windows XP, win7, win8, win10 |
| Remarks | The above data for reference only, may change due to continuous
product/model improvement. |
ZKMC uv wall printer painting costs are low, less than USD 1 per
square meter. If customer only charge about USD 10/m2. It' d gain
10 times of return. Compared with the cost and profit return it is
very considerable, so the vertical wall printer market prospects
are very delighted.
In order to have good word of mouth propagana, first of all to buy
a good machine, to be stable. In terms of the use of ZKMC vertical
wall printer, with automatic intelligent painting, no typography,
as long as the picture's uploaded into the laptop for printing, you
could get the painted pattern and selectdc the picture exactly the
same.
