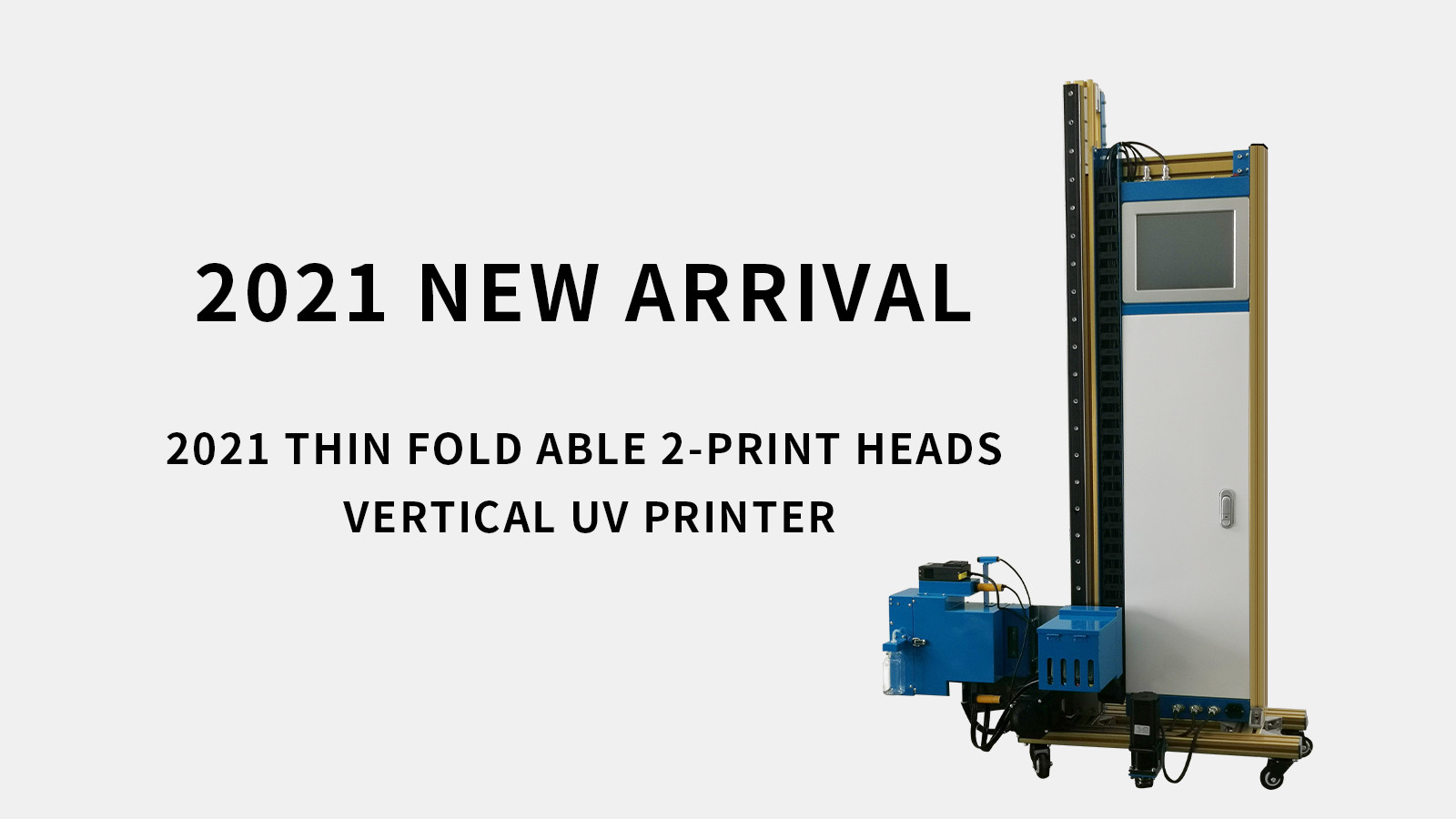

ZKMC 2 Printheads built-in pad CMYKW Thin Foldable vertical UV Wall
Printer
This 2021 new developed machine won attention as it looks cute and
easy to travel.

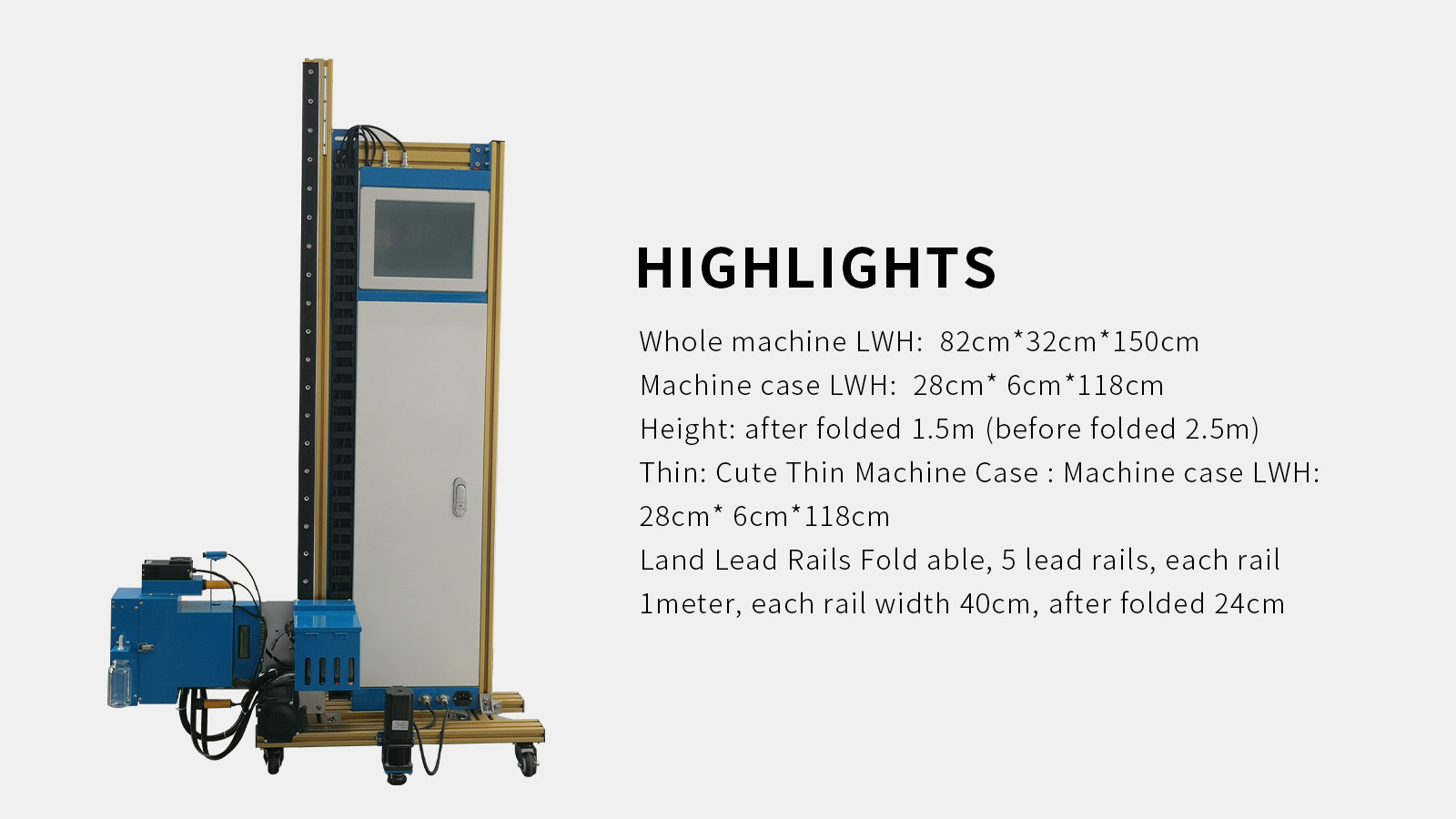

Its height only 1.4meter after folded, the land lead rails also
foldable, only 24cm in width after folded. This machine is slim,
only around 52kg. With a build-in ipad, so there is no need to link
other PC with the machine. The net print height is 1.6m each time,
and can print any width. If You have bigger photo eg. 3meter high
photo to print, You can print twice and connect the two parts
seamlessly into one whole piece.
There are universal wheels under the machine for easier moving
around, CMYKW 5 colors with fan cooling system.Normally this
machine is use Indoor printing (as the uv ink is afriad of
sunlight)on almost any vertical smooth materials.
| Basic parameters | |
| Data transmission mode | USB |
| L*W*H (main body from ground) | 82*32*250cm (height customizable), after folded the height is only
150cm |
| Printhead | Auto cleaning |
| Ink consumption | 15-20ml/m2 |
| Ink base color | CMYK+WWWW |
| Painting precision | Upto 2880DPI |
| Painting direction | Vertical |
| Painting speed | Multispeed adjustable, ~1-8m2/h |
| Voltage/power | 90-246V/380W,47-63HZ |
| Noise | Standy<20dBA, painting <50dBA |
| Storage/Operation | -10℃-35℃(59°F-95°F) |
| 10%-70% relative humidity, in non-condensation state |
| Surface tracing | Hyperbolic banner sensors, two-way induction up and down |
| Machine configuration | |
| X axis guide | 5m rails |
| Z axis guide | 14cm |
| Spay distance | 0.5-1cm |
| X axis effective stroke | 470cm |
| Z axis effective stroke | 10cm |
| Synchro belt | 1pcs |
| Drive rack | 5pcs, each rail 1 meter long, 40cm width, after folded, the rail
only 24cm in width |
| Net picture print height | Fan cooling machine 1.6m, Water cooling machine 1.5m (height
customizable, free width) |
| Machine weight | 52kg |
| Lead rails weight | 10kg/piece*5pcs, total 50kg |
| Applied wall | Any flat materials |
| Control configuration | |
| Ink container capacity | 400ml/piece |
| Printhead cleaning | Auto |
| Flasing testing | Y |
| Stepper motor | Y |
| Level | Y |
| Painting mode | Bi-directional |
| Ultrasonic sensors | 2pcs |
| Performance configuration | |
| Language | English |
| Auto blank skip | Y |
| Ink supply mode | Negative pressure auto ink supply |
| Color matching treatment | Auto |
| Ink use | Special UV ink |
| Surface treatment after printing | N |
| Integrated voltage stabilizer | Y |
| Laser positioning | Y |
| Ink Heating | Y |
| Software | Professional Printer Maintop Software, ZKMC output software |
| Computer system | Windows XP, win7, win8, win10 |
| Remarks | The above data for reference only, may change due to continuous
product/model improvement. |
ZKMC vertical wall printer advantages:
Beijing Zhongkemeichuang (ZKMC) Science And Technology Ltd.,
established in 2013, is a high-tech company specializing in R & D,
production, sales and after-sales service of intelligent wall
printer machine. In order to meet the market demand, the scale of
the brand is becoming larger and larger. We have sole agents in
Middle East, Russia and Belarus, have set up offices in Changsha,
Guiyang, Jinan. Zhongkemei is the founder of 3d colorful inkjet
wall printer. This invention not only saves labor cost, but also
breaks the limitation of hand drawing. Break through the technical
problems at all levels, perfect response to curved wall, all kinds
of weather, and other problems. Many traditional hand-painted
masters are very much impressed by our wall printer. It was
recommended as a potential investment project by CCTV, and was
specially reported by CCTV financial channel. Our products are
exported to Romania, Switzerland, Russia, Egypt, Israel, Canada,
Sweden, Vietnam, and other countries. ZKMC wall printer quality has
been well received by customers.
FAQ
1. What payment method are supported?
Preferred payment method is T/T.
2. What’s your delivery time?
We will arrange the delivery within 5~10 working days after
receiving the payment.
3. Can we send our technician to your factory for training?
Yes, you are warmly welcome to visit us for free training.
4. Once there is something need to replace, what can I do?
We supply all the spare parts for the printer. We suggest that users order spare parts package for long time
maintenance and fast replacement.
5. If I have some technical problem, how can you help us to solve
it?
Detailed description, photos or video will help our technician
analyze the issue and provide related solution accordingly.
