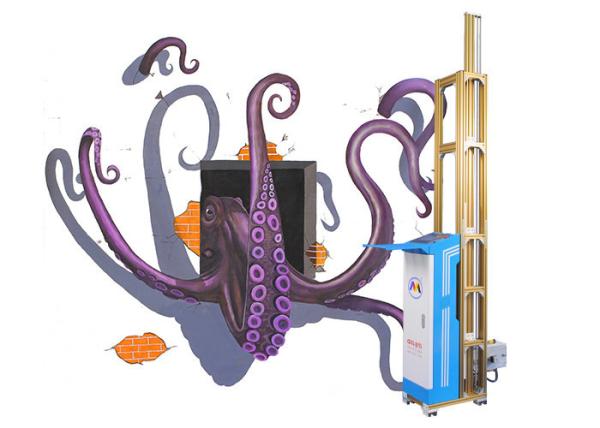

Vertical Zkmc 3d Mural Painting Vertical 3d Wall Printing Machine
ZKMC 3d Wall Printing Machine can print any pictures to wall
directly. Including cartoon animation, landscapes pictures,
paintings of flowers, birds and insects, Chinese style painting,
wedding photos, oil painting, family photos, gouache, etc. All can
be automatically painted on various walls. Our wall printer could
widely applied to a variety of materials, like cement wall, brick
wall, shell powder wall, diatom mud wall... Broadly applies to the
decoration of family, hotel, bar, kindergarten, school, and the
government propaganda pictures, poster, etc. You could see many
amazing projects done by our inkjet wall painting machines in
hotels, garment shops, building material shops, manufacturing
plant, machinery repair shops, food & beverage factory, farms,
restaurant, home use, retail, printing shops, construction sites,
energy & mining, food & beverage shops, advertising company, etc.
| Basic parameters |
| Data transmission mode | USB |
| L*W*H (main body from ground) | Standard model: 70*31*239cm (the other models: 259cm, 329cm) |
| Printhead | Auto cleaning |
| Ink consumption | 8-12ml/m2 (less than USD1/m2) |
| Ink base color | Dual 4 colors (CMYK, CMYK), use special water based ink |
| Painting precision | From 720DPI, upto 2880DPI |
| Painting direction | Vertical |
| Painting speed | Multispeed adjustable, ~1-10m2/h |
| Voltage/power | 90-246V/380W,47-63HZ |
| Noise | Standy<20dBA, painting <50dBA |
| Storage/Operation | -10℃-35℃(59°F-95°F) |
| 10%-70% relative humidity, in non-condensation state |
| Surface tracing | Hyperbolic banner sensors, two-way induction up and down |
| Machine configuration |
| Display screen | 7’’ LCD, touch screen |
| Spay distance | 0.5-1cm |
| X axis effective stroke | 470cm |
| Y axis effective stroke | Standard model: 180cm (the other models: 200cm, 270cm) |
| Net picture print height | Standard 1.8m (other models: 2.0m, 2.7m), unlimited width |
| Machine weight | 62kg |
| Lead rails weight | 10kg*5pcs |
| Applied wall | Inside & outside putty wall, latex wall, white wall, diatom mud
wall, shell powder wall, wooden wall, paper, brick wall, canvas,
etc. |
| Control configuration |
| Ink container capacity | 400ml |
| Printhead cleaning | Auto |
| Pump test | Y |
| Stepper motor | Y |
| Level | Y |
| Painting mode | Bi-directional |
| Ultrasonic sensors | 2pcs |
| Performance configuration |
| Language switch | Chinese, English |
| Auto skip blank | Y |
| Intelligent lifting | Support |
| Ink supply mode | Negative pressure auto ink supply |
| Color matching treatment | Auto |
| Ink use | Water based ink |
| Surface treatment | Water based varnish |
| Integrated voltage stabilizer | Y |
| Ink Heating | Y |
| Software | Professional Printer Maintop Software, ZKMC output software |
| Computer system | Windows XP, win7, win8, win10 |

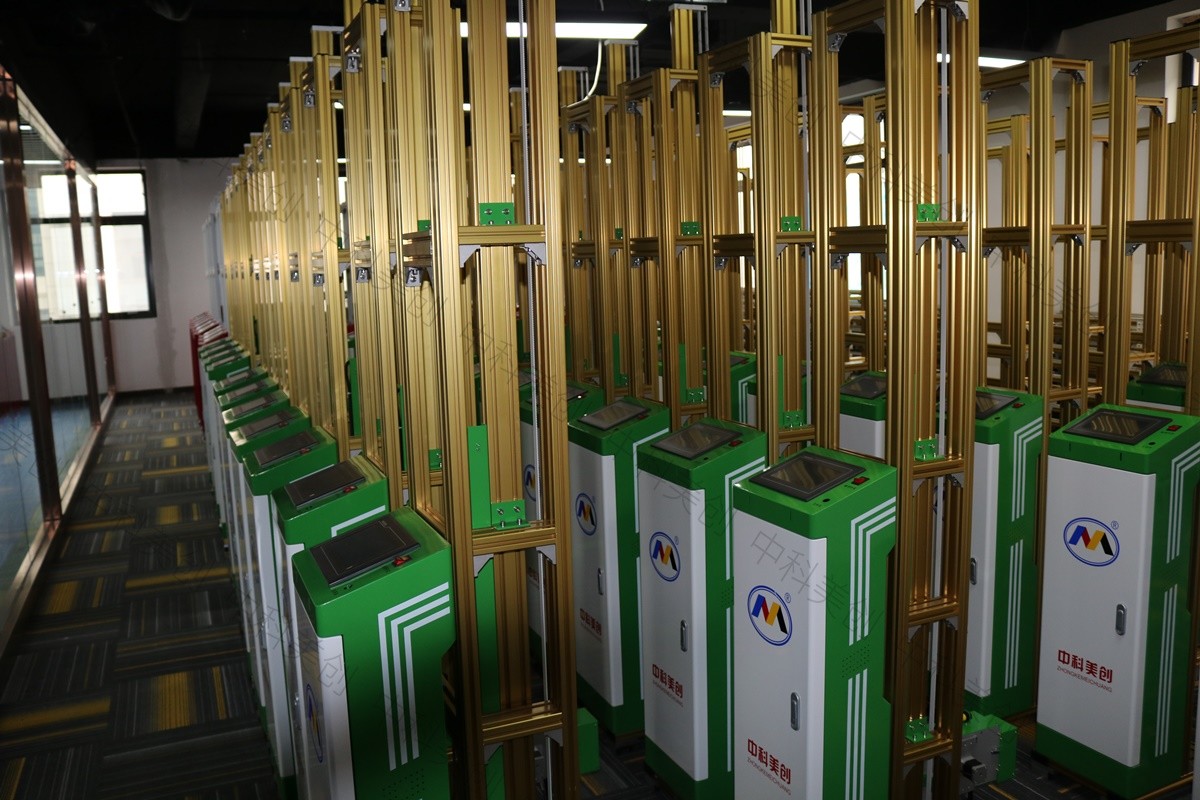

Beijing Zhongkemeichuang (ZKMC) Science and Technology Ltd. is a
very famous professional wall printing
machine manufacturer. We have been devoted in researching and
developing the new technology of wall printer
since 2013. Over 900 square meters workshop is located in Beijing
Yizhuang Economic-Technological Development Zone. As a leader
manufacturer in wall printer field, our company was invited to
participate in the CCTV TV show "I Love Inventions" of Channel 10.
Our automatic wall printing equipments're recognized as innovation
on mural printing!
